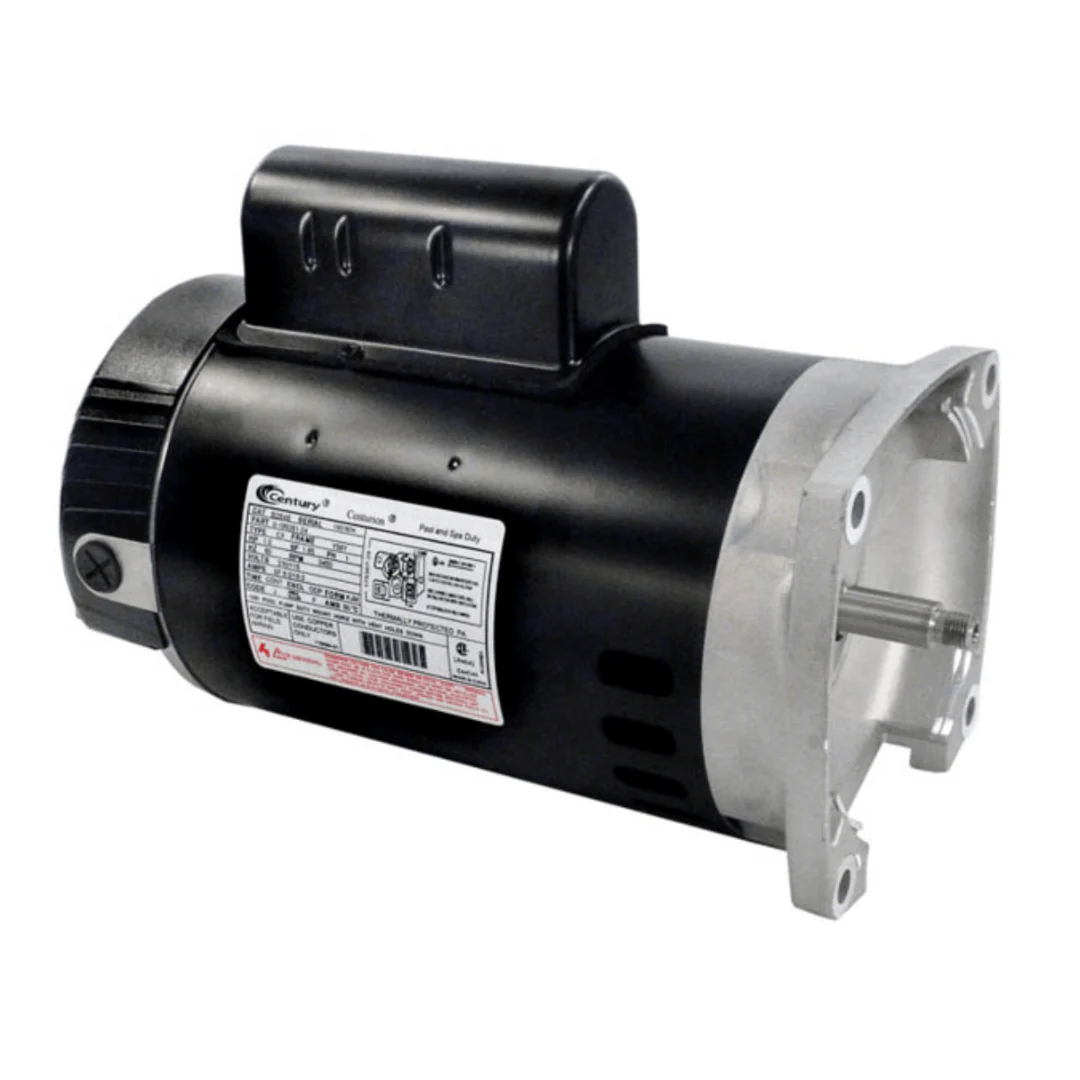

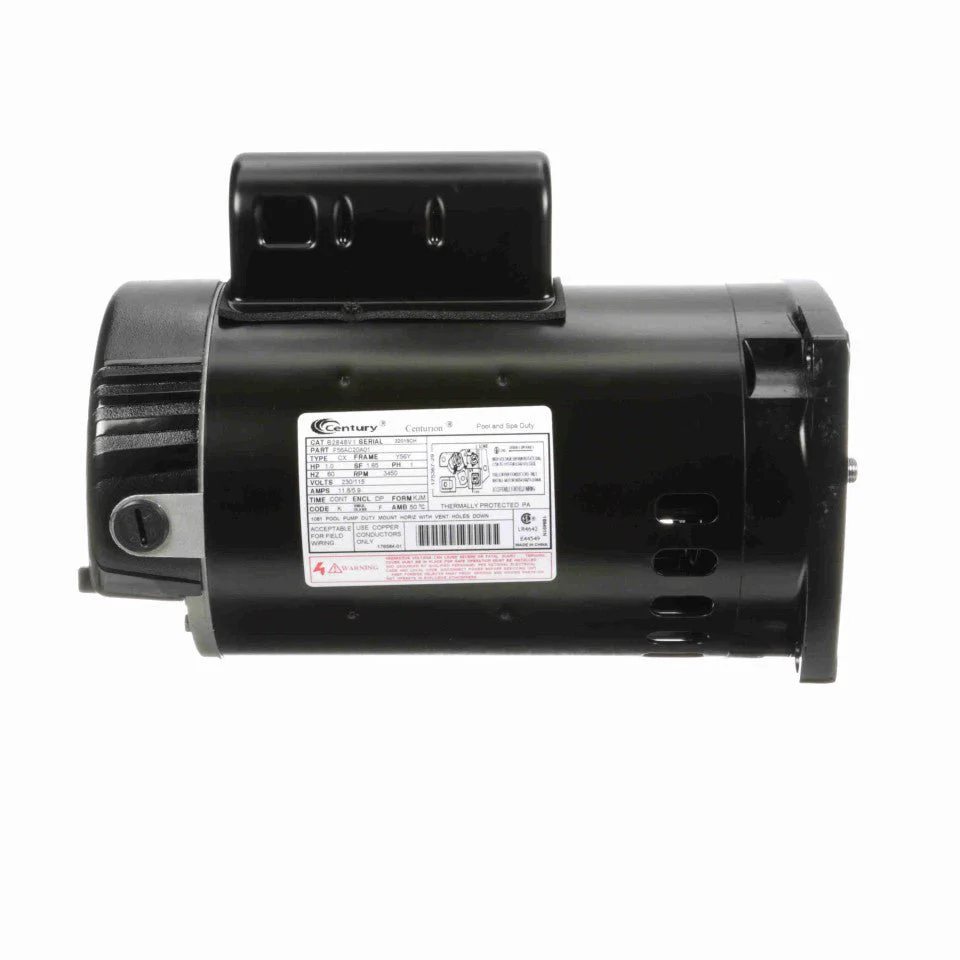

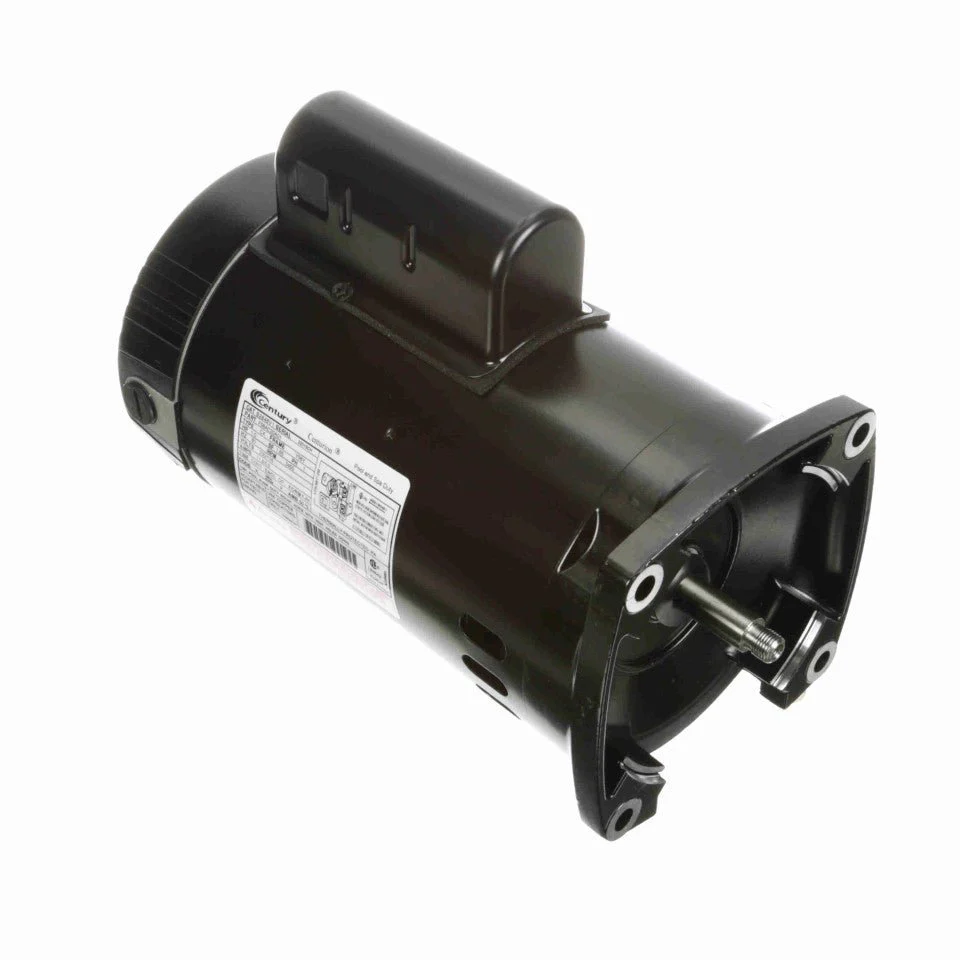

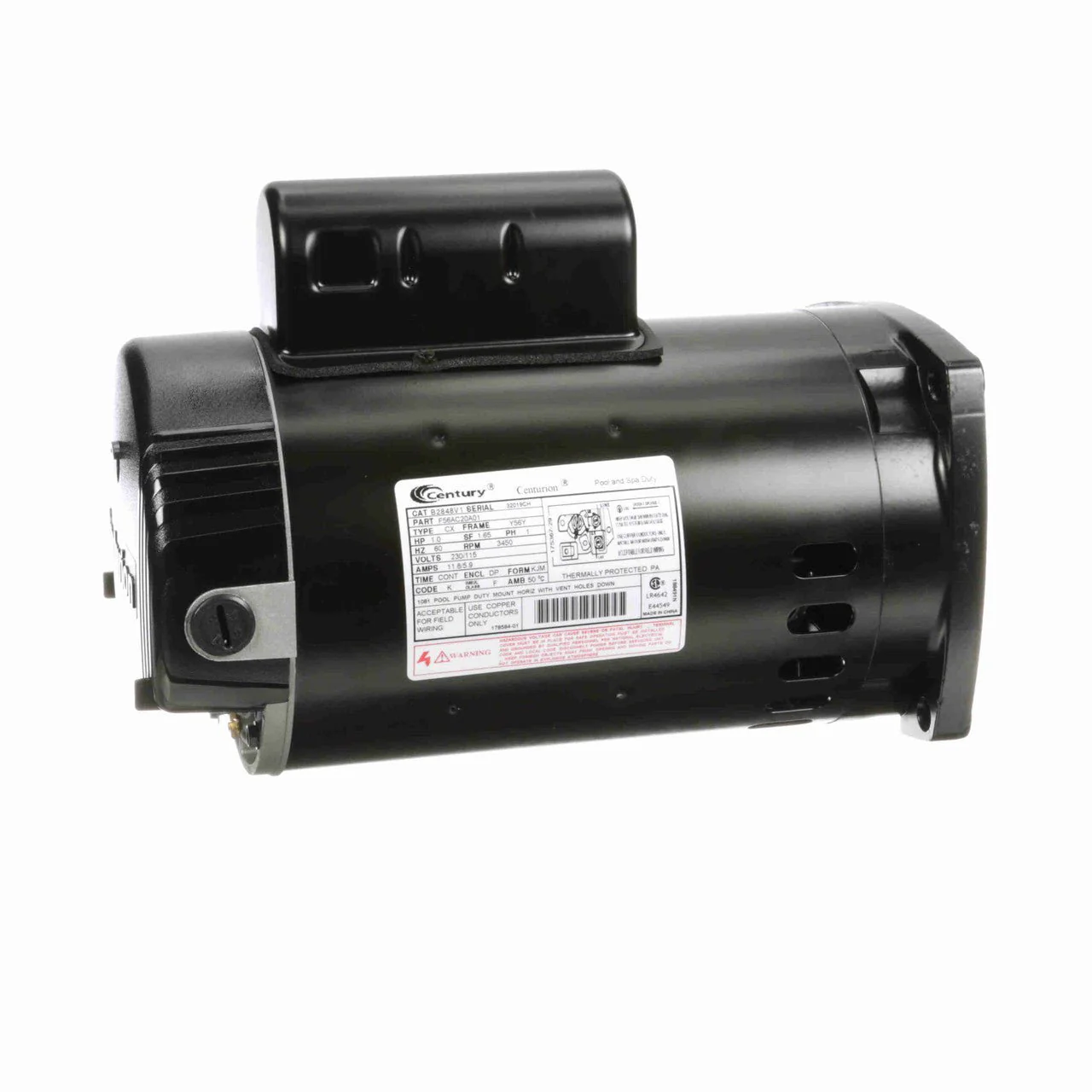

Century B2848V1 Pool Pump Motor, 1 HP, 1 Ph, 60 Hz, 115/230 V, 3600 RPM, Y56Y Frame, DP
Century (A.O. Smith) 1.0 HP Full Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2848 / B2848V1
- Compatible with: WhisperFlo Motors Standard - Full Rate
- 1 HP FULL RATED FLANGED MOTOR
- 1.65 SF
Specifications:
| Output HP: | 1.0 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 11.8/5.9 A | Speed: | 3450 rpm |
| Service Factor: | 1.65 | Phase: | 1 |
| Efficiency: | 61 % | Duty: | Continuous |
| Insulation Class: | F | Frame: | Y56Y |
| Enclosure: | Drip Proof | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 50 °C | UL: | Recognized |
| CSA: | Y | Number of Speeds: | 1 |
$319.99
Century B2848V1 Pool Pump Motor, 1 HP, 1 Ph, 60 Hz, 115/230 V, 3600 RPM, Y56Y Frame, DP—
$319.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century (A.O. Smith) 1.0 HP Full Rate Motor, Square Flange 56Y Frame, Single Speed - Model B2848 / B2848V1
- Compatible with: WhisperFlo Motors Standard - Full Rate
- 1 HP FULL RATED FLANGED MOTOR
- 1.65 SF
Specifications:
| Output HP: | 1.0 Hp | Output KW: | 0.75 kW |
| Frequency: | 60 Hz | Voltage: | 115/230 V |
| Current: | 11.8/5.9 A | Speed: | 3450 rpm |
| Service Factor: | 1.65 | Phase: | 1 |
| Efficiency: | 61 % | Duty: | Continuous |
| Insulation Class: | F | Frame: | Y56Y |
| Enclosure: | Drip Proof | Thermal Protection: | Thermally Protected |
| Ambient Temperature: | 50 °C | UL: | Recognized |
| CSA: | Y | Number of Speeds: | 1 |
